4KW Rotary 8mm Thickness River Port Sludge Drying Equipment

Ask Lasest Price
Brand Name :	hengyang
Model Number :	HYD005
Certification :	ISO9001
Price :	51600-98200USD/Set
Payment Terms :	L/C, T/T
Supply Ability :	26 Sets/month
Delivery Time :	30-36 days

Add to Cart

Product Details
Company Profile

4KW Rotary 8mm Thickness River Port Sludge Drying Equipment

River/Port sludge is mainly from the river/lake/sea which is polluted. If not treated properly, it may take more pollution. And the dry sludge is rich of mineral substances, can be used as fertilizer material.

But such sludge is hard to dry. There are much bound water, so that it is pasty. To overcome this problem, we designed drying equipment specially for River/Port sludge.

River/Port Sludge Rotary Dryer Features:

(1) The rotary speed is adjustable.

(2) Simple structure and operation.

(3) The dryer can dry high moisture content and large volume materials.

(4) There is elastic plate sealing strip in feed inlet and outlet.

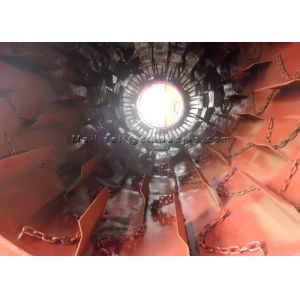

(5) There is lifting blade in the inner cylinder, it can make the material mixed with the heat flow fully.

(6) It is matched with stove

River/Port Sludge Rotary Dryer Technical Details:

Length and Diameter	Volume	Reducer	Thickness (mm)	Weight (T)	Power(kw)	Fan power (kw)	Yield(t)
Φ 0.8 × 8	4	JZQ350	8	3.2	4	4	0.5-2
Φ 0.8 × 10	5	JZQ350	8	3.7	4	4	0.5-2.5
Φ 1 × 8	6.3	JZQ350	8	4.5	5.5	4	1-2.5
Φ 1 × 10	7.9	JZQ350	8	5.2	5.5	5.5	1-3
Φ 1 × 12	9.4	JZQ350	8	5.7	7.5	5.5	1-4
Φ 1.2 × 10	11.3	JZQ400	10	9	11	7.5	1-4.5
Φ 1.2 × 12	13.6	JZQ400	10	10	11	7.5	1-4.8
Φ 1.2 × 14	15.8	JZQ400	10	11	11	7.5	1-5
Φ 1.2 × 16	18	JZQ400	10	12	11	7.5	2-6
Φ 1.5 × 12	21.2	JZQ500	12	14.4	11	7.5	2-9
Φ 1.5 × 14	24.7	JZQ500	12	15.6	15	11	2-9.5
Φ 1.5 × 16	28.3	JZQ500	12	16.8	15	11	2-10
Φ 1.8 × 14	35.6	JZQ500	16	23	18.5	15	5-11
Φ 1.8 × 16	40.7	JZQ500	16	24.5	18.5	15	5-12
Φ 1.8 × 18	45.8	JZQ500	16	26	18.5	15	5-13
Φ 2 × 18	56.5	JZQ650	18	31	22	18.5	5-15
Φ 2 × 20	62.8	JZQ650	18	33	30	22	5-16
Φ 2 × 22	69	JZQ650	18	35	30	22	5-17
Φ 2.2 × 18	68.3	JZQ650	20	38	30	22	8-18
Φ 2.2 × 20	75.9	JZQ650	20	42	30	22	8-19
Φ 2.2 × 22	83.5	JZQ650	20	46	30	22	8-20
Φ 2.2 × 24	91.1	JZQ650	20	50	30	22	8-21
Φ 2.4 × 16	72.3	JZQ650	22	45	37	30	10-20
Φ 2.4 × 20	90.4	JZQ750	22	51	45	37	10-22
Φ 2.4 × 24	108.2	JZQ750	22	60	55	37	10-25
Φ 2.4 × 28	126.6	JZQ750	24	67	75	55	10-30
Φ 2.7 × 18	1.03	JZQ750	24	55	75	55	15-25
Φ 2.7 × 24	137.3	JZQ750	24	68	75	55	15-30
Φ 3 × 20	141.3	JZQ900	25	81	75	55	25-30
Φ 3.2 × 20	160	JZQ900	25	95	90	55	25-35
Φ 3.2 × 28	225	JZQ900	25	101	90	75	25-40
Φ 3.5 × 24	230	JZQ900	25	120	110	75	30-50
